FPGA RISC-V SoC
I’m currently designing a SoC based on my own RISC-V rv32IM-compatible processor core with VGA graphics and other miscellaneous IO functionality TBD. Initially, I targeted the amazing Upduino’s ICE40UP5K FPGA, but in search of higher performance, I have pipelined my initial design and switched to using a ECP5 to allow for a more complex and optimized design with more FUNctionality.
Current Achievements:
-

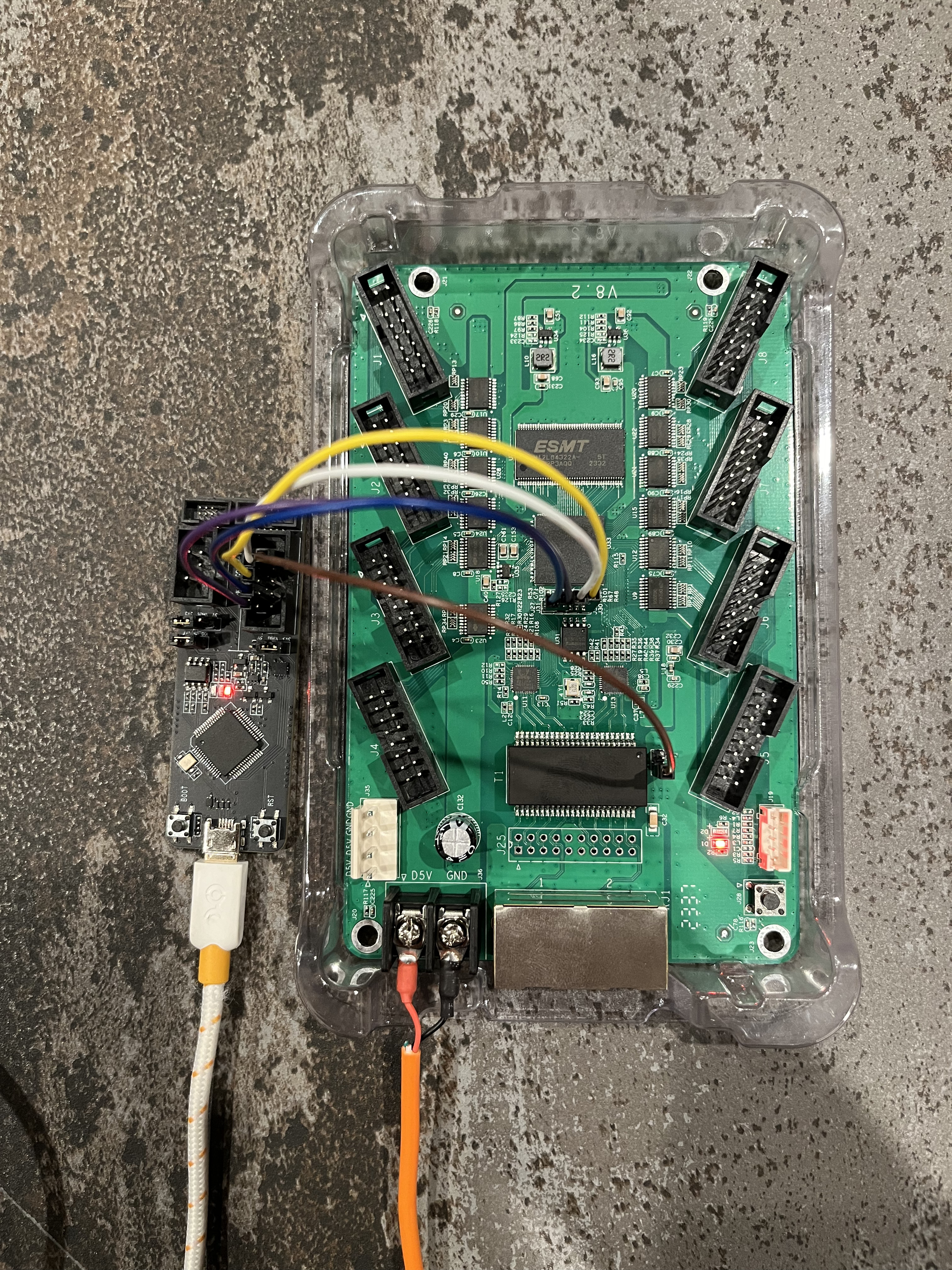

Pipelined rv32im CPU and SoC capable of running on a ColorLight 5A-75B board (Lattice ECP5 LFE5U-25F) at 50MHz. 33.386 MIPS @ 50MHz, with the Dhrystone benchmark (1.5 CPI).
-
Multi-cycle rv32im CPU and SoC capable of running on an Upduino board (Lattice ICE40UP5K) at 25MHz (overclocked). 4.7MIPS according @ 25MHz with the Dhrystone benchmark (5.32 CPI)
-

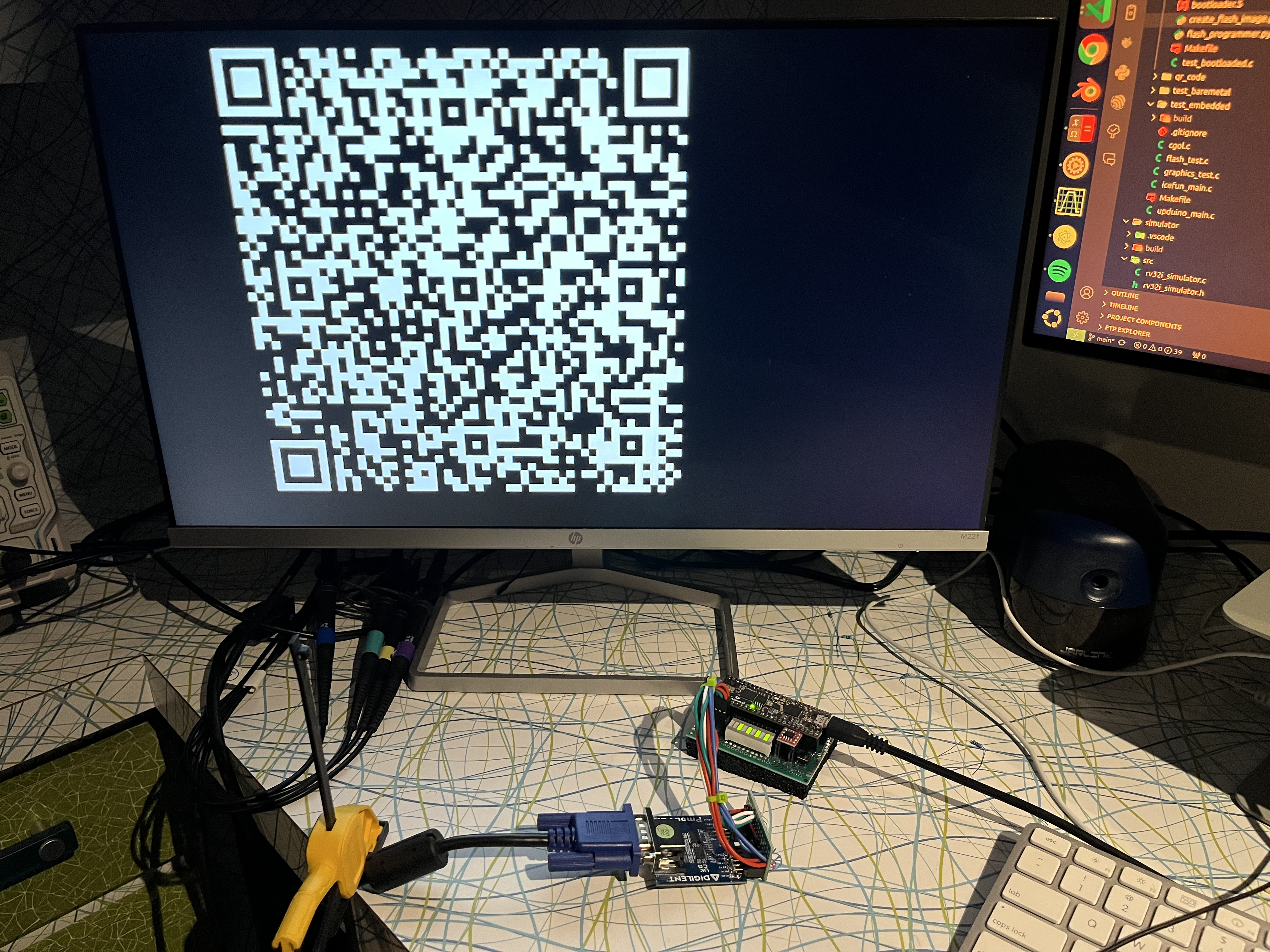

2-bit-color memory-mapped text mode VGA display adapter (640x480, 8x16 bitmap font, fg&bg color)
-
Memory-mapped parallel IO and SPI host controller
-
SPI Flash memory bootloader for Upduino SoC (flash memory->SPRAM)
-
rv32im simulator written in C, side-by-side comparative verification by simulation of HDL designs (Verilator) alongside the software simulator. Running the official RISC-V rv32im test suite.
-
SDL-based emulator for both SoCs with VGA and HUB75 LED matrix emulation.

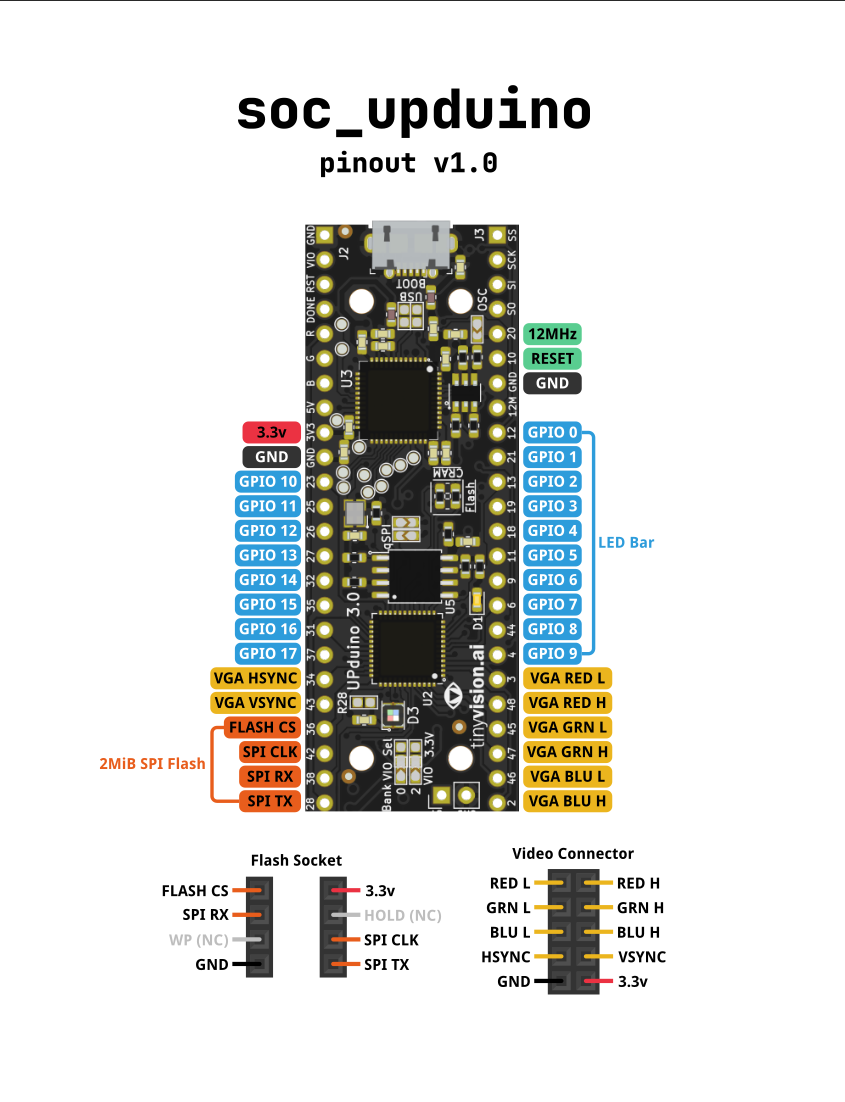

Here’s a pinout diagram of my initial Upduino-based carrier board with 2-bit VGA graphics and a SPI controller for bootloading from flash memory.
